VelReader2D Class Reference

#include <velreader2d.h>

Inheritance diagram for VelReader2D:

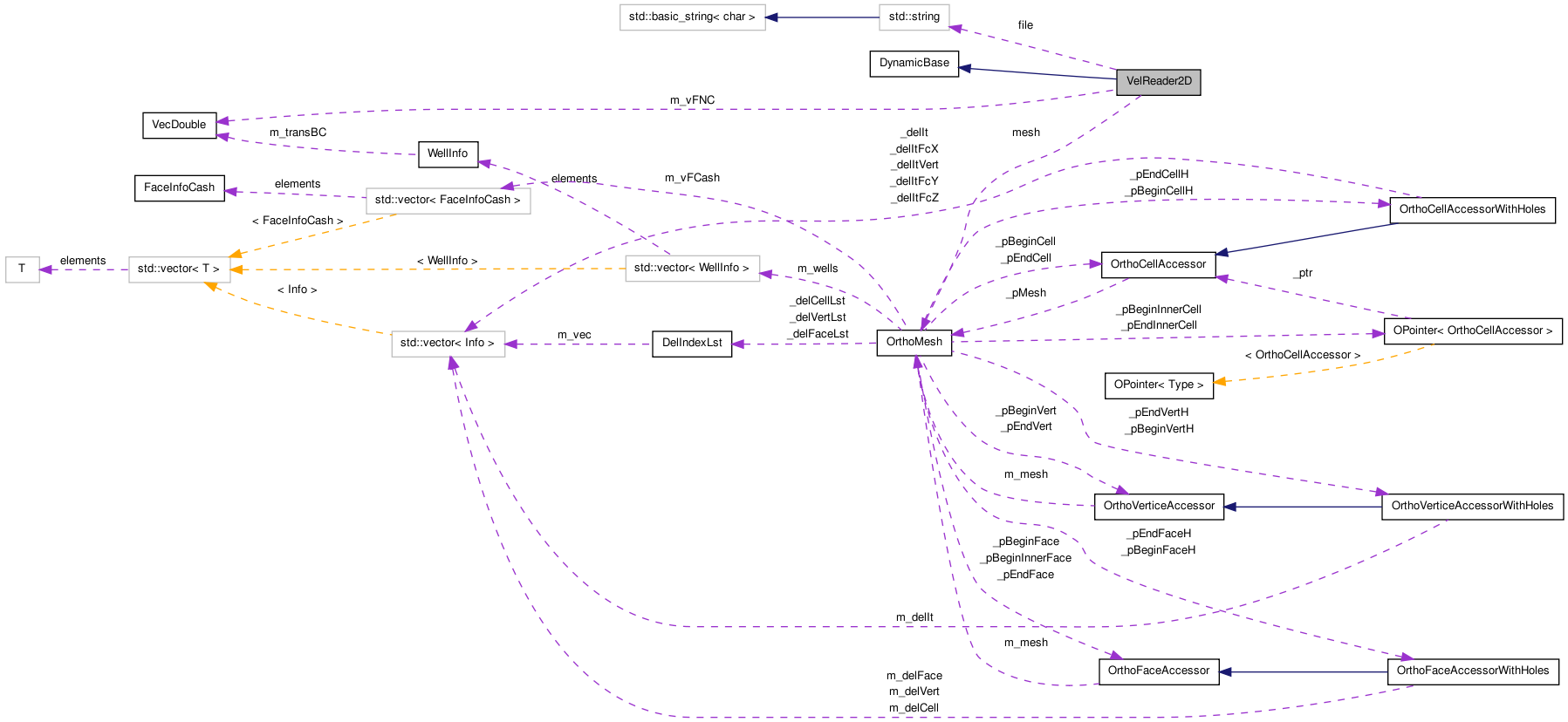

Collaboration diagram for VelReader2D:

Public Member Functions
	VelReader2D (std::string filename, OrthoMesh &mesh)
	~VelReader2D ()
virtual void	getVelocitiesAtFaces (Matrix &vel)
virtual void	getNormalVelocityAtFaces (VecDouble &vFNC)
virtual void	iterate (TransportBase &trans)
virtual void	printOutput ()
Private Attributes
std::string	file
OrthoMesh &	mesh
VecDouble	m_vFNC

Detailed Description

Definition at line 9 of file velreader2d.h.

Constructor & Destructor Documentation

VelReader2D::VelReader2D	(	std::string	filename,
		OrthoMesh &	mesh
	)

Definition at line 5 of file velreader2d.cpp.

00006   :mesh(mesh)
00007 {
00008   file=filename;
00009   m_vFNC.reinit(mesh.numFaces());
00010 }

VelReader2D::~VelReader2D ( ) [inline]

Definition at line 19 of file velreader2d.h.

00019 {}

Member Function Documentation

void VelReader2D::getNormalVelocityAtFaces ( VecDouble & vFNC ) [virtual]

Reimplemented from DynamicBase.

Definition at line 13 of file velreader2d.cpp.

00014 {
00015   vFNC=m_vFNC;
00016
00017 }

void VelReader2D::getVelocitiesAtFaces ( Matrix & vel ) [virtual]

Reimplemented from DynamicBase.

Definition at line 86 of file velreader2d.cpp.

00087 {
00088   assert(vel.m() == mesh.numFaces() && vel.n() == 3);
00089
00090   vel = 0.0;
00091   //Get the face iterator and the number of faces.
00092   OrthoMesh::Face_It face = mesh.begin_face();
00093   OrthoMesh::Face_It endf = mesh.end_face();
00094
00095   //For each face
00096   for (;face!=endf;face++)
00097   {
00098     vel(face->index(),face->getNormalOrientation()) = m_vFNC(face->index());
00099   }
00100
00101 }

void VelReader2D::iterate ( TransportBase & trans ) [virtual]

Implements DynamicBase.

Definition at line 23 of file velreader2d.cpp.

00024 {
00025
00026   OrthoMesh::Cell_It cell = mesh.begin_cell();
00027   OrthoMesh::Cell_It endc = mesh.end_cell();
00028   std::ifstream indata;
00029   indata.open(file.c_str());
00030     if (!indata)
00031     {
00032       throw new Exception("VelReader2D: File %s  does not exist",file.c_str());
00033
00034     }
00035   for(;cell!=endc;cell++)
00036   {
00037     double data1,data2,data3,data4;
00038
00039     /*indata.open(file.c_str());
00040     if (!indata)
00041     {
00042       throw new Exception("VelReader2D: File %s  does not exist",file.c_str());
00043
00044       }*/
00045     m_vFNC(cell->face_index_up()) = 0;
00046     m_vFNC(cell->face_index_bottom()) =0;
00047     /*indata >>data1;
00048     indata >>data2;
00049     indata >>data3;
00050     indata >>data4;
00051     m_vFNC(cell->face_index_left())=data1;
00052     m_vFNC(cell->face_index_right())=data2;
00053     m_vFNC(cell->face_index_front())=data3;
00054     m_vFNC(cell->face_index_back())=data4;*/
00055     indata >>data1;
00056     if(indata.eof())
00057       throw new Exception("VelReader2D:Data file has %d lines and we expected %d lines",cell->index()+1,m_vFNC.size());
00058
00059     m_vFNC(cell->face_index_left())=-data1;
00060     indata >>data2;
00061     m_vFNC(cell->face_index_right())=data2;
00062     indata >>data3;
00063     m_vFNC(cell->face_index_front())=-data3;
00064     indata >>data4;
00065     m_vFNC(cell->face_index_back())=data4;
00066     //indata.close();
00067     //throw new Exception("End of the file reached");
00068
00069   }
00070   indata.close();
00071   if(indata.eof())
00072     throw new Exception("VelReader2D:Data file has more lines than expected. It should have  %d lines",mesh.numCells());
00073
00074   /*DEBUG PURPOSES
00075     cout<< "Printing m_vFNC vector"<< m_vFNC.size()<<"\n";
00076
00077   for(int i= 0;i< m_vFNC.size();i++)
00078   {
00079     //throw new Exception("The face number:%d fluid field:%f\n ",i,m_vFNC(i));
00080     cout<< "The face number: "<< i <<" fluid field: "<< m_vFNC(i)<< "\n";
00081     }*/
00082
00083 }
