DealOrthoMesh Class Reference

#include <dealorthomesh.h>

Inheritance diagram for DealOrthoMesh:

[legend]

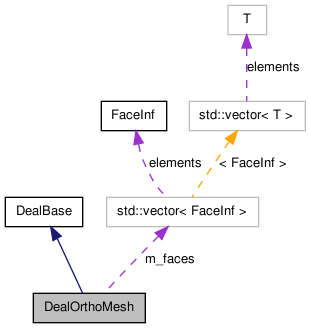

Collaboration diagram for DealOrthoMesh:

[legend]

List of all members.

Public Types
enum	NormalOrientation { NORMAL_X = 0, NORMAL_Y = 1, NORMAL_Z = 2 }
typedef std::vector< FaceInf > ::iterator	Face_It
Public Member Functions
Point3D	getP () const
Point3D	getQ () const
	DealOrthoMesh (Triangulation< 3 > &tria)
	~DealOrthoMesh ()
int	numFacesAtBoundary ()
int	numElems (unsigned i)
Face_It	begin ()
Face_It	end ()
Face_It	begin (int n)
double	faceArea (const Face_It &face)
double	faceAreaPerCellVol (const Face_It &face)
double	faceValue (const Face_It &face, const VecDouble &fValues)
double	getCellVolume ()
double	getDX () const
double	getDY () const
double	getDZ () const
double	getCellMeasure () const
void	projectCentralValuesAtVertices (const VecDouble &cValues, VecDouble &vValues)
double	getL2NormAtCells (const VecDouble &cValues) const
double	getIntegralAtCells (const VecDouble &cValues) const
bool	nonZeroInwardNormalComponenentIsPositive (FaceDirection3D face_no)
Point3D	getBarycenter (Face &face)
double	faceArea (FaceDirection3D face_no)
void	getFacesInYZSlab (double X, VecIndex &fIndices)
Protected Member Functions
void	buildFaceInformation (Triangulation< 3 > &tria)
Private Attributes
std::vector< FaceInf >	m_faces
unsigned	nElems [3]
double	m_dX
double	m_dY
double	m_dZ
double	m_FacesArea [3]
double	m_FacesAreaFromCellDirection [6]
double	m_FacesAreaPerVolume [3]
double	m_Vol
int	n_boundary_faces
Point3D	P
Point3D	Q

---

Detailed Description

This class allows iteration along the faces. For each face we can ask who is the neighbors cells or, multiply a vector by the normal in the face. Its a class originally designed for finite volume methods which iterates along the cells computing the conservation law using the fluxes along the faces. Every face has two neighbors cells: cell1 and cell2. Since we have an ortho mesh the faces` normals are aligned with the main axes X,Y,Z. We use this to recognize with cell is cell1 and witch one is cell2. The cell1 of a face is the cell that has outward normal at that same face pointing to the positive direction, the cell2 is the one which has the normal pointing to the negative direction in that face. For example, for a face in the YZ plane, cell1 is the cell in the left (outward normal == <1,0,0>) and cell2 is on the right.

Definition at line 21 of file dealorthomesh.h.

---

Member Typedef Documentation

typedef std::vector<FaceInf>::iterator DealOrthoMesh::Face_It

Definition at line 44 of file dealorthomesh.h.

---

Member Enumeration Documentation

enum DealOrthoMesh::NormalOrientation

Enumerator:

NORMAL_X
NORMAL_Y
NORMAL_Z

Definition at line 43 of file dealorthomesh.h.

{ NORMAL_X=0,NORMAL_Y=1,NORMAL_Z=2};

---

Constructor & Destructor Documentation

DealOrthoMesh::DealOrthoMesh

(

Triangulation< 3 > &

tria

)

Definition at line 5 of file dealorthomesh.cpp.

   :DealBase(tria)
{
  //Since the mesh is uniform, all cells have the same dimensions, so store these
  //values for easy retieval.
  Cell cell = getTriangulation().begin_active();
  m_dX = DealBase::getDX(cell);
  m_dY = DealBase::getDY(cell);
  m_dZ = DealBase::getDZ(cell);
  m_Vol = m_dX * m_dY * m_dZ;
  m_FacesArea[NORMAL_X] = m_dY*m_dZ;
  m_FacesArea[NORMAL_Y] = m_dX*m_dZ;
  m_FacesArea[NORMAL_Z] = m_dX*m_dY;
  P = cell->vertex(VERTEX_000);


  m_FacesAreaFromCellDirection[LEFT_FACE]=m_FacesArea[NORMAL_X];
  m_FacesAreaFromCellDirection[RIGHT_FACE]=m_FacesArea[NORMAL_X];
  m_FacesAreaFromCellDirection[FRONT_FACE]=m_FacesArea[NORMAL_Y];
  m_FacesAreaFromCellDirection[BACK_FACE]=m_FacesArea[NORMAL_Y];
  m_FacesAreaFromCellDirection[BOTTOM_FACE]=m_FacesArea[NORMAL_Z];
  m_FacesAreaFromCellDirection[UP_FACE]=m_FacesArea[NORMAL_Z];

  m_FacesAreaPerVolume[NORMAL_X] = 1.0/m_dX;
  m_FacesAreaPerVolume[NORMAL_Y] = 1.0/m_dY;
  m_FacesAreaPerVolume[NORMAL_Z] = 1.0/m_dZ;
  //build the information about the faces.
  buildFaceInformation(tria);

  //calculate number of faces at boundary;
  Face_It end1 = end();
  n_boundary_faces=0;
  for(Face_It face = begin();face != end1;face++)
  {
    if (face->at_boundary())
      n_boundary_faces++;
  }

  int nX=0,nY=0,nZ=0;
  for (Cell cell = beginCell();cell.state()==IteratorState::valid;cell=cell->neighbor(RIGHT_CELL))
    nX++;
  for (Cell cell = beginCell();cell.state()==IteratorState::valid;cell=cell->neighbor(BACK_CELL))
    nY++;
  for (Cell cell = beginCell();cell.state()==IteratorState::valid;cell=cell->neighbor(UP_CELL))
    nZ++;
  nElems[0]=nX;
  nElems[1]=nY;
  nElems[2]=nZ;
  Q[0] = P[0] + nElems[0]*getDX();
  Q[1] = P[1] + nElems[1]*getDY();
  Q[2] = P[2] + nElems[2]*getDZ();




}

DealOrthoMesh::~DealOrthoMesh

(

)

Definition at line 62 of file dealorthomesh.cpp.

{

}

---

Member Function Documentation

Face_It DealOrthoMesh::begin

(

int

n

)

[inline]

Definition at line 56 of file dealorthomesh.h.

{return m_faces.begin()+n;}

Face_It DealOrthoMesh::begin

(

)

[inline]

Definition at line 54 of file dealorthomesh.h.

{return m_faces.begin();}

void DealOrthoMesh::buildFaceInformation

(

Triangulation< 3 > &

tria

)

[protected]

Build adjacent cells information for each face

This private method build information telling for each face what are the neighbors cells. The order of the two cells is very important. Since we have orthonormal meshes the faces has normals aligned with the main axes. The first cell in a face entry is the one whose face have outward normal in the positive direction.

Parameters:

tria

The triangulation which we build the information.

Definition at line 75 of file dealorthomesh.cpp.

{
  m_faces.clear();
  m_faces.resize(tria.n_active_faces());
  //For each cell.
  for (Triangulation<3>::active_cell_iterator cell = tria.begin_active(); cell != tria.end(); cell++)
  {
    m_faces[cell->face_index(LEFT_FACE  )].setNegNormalCell(cell->index());
    m_faces[cell->face_index(LEFT_FACE  )].setNormalDirection(NORMAL_X);

    m_faces[cell->face_index(RIGHT_FACE )].setPosNormalCell(cell->index());
    m_faces[cell->face_index(RIGHT_FACE  )].setNormalDirection(NORMAL_X);

    m_faces[cell->face_index(FRONT_FACE )].setNegNormalCell(cell->index());
    m_faces[cell->face_index(FRONT_FACE )].setNormalDirection(NORMAL_Y);

    m_faces[cell->face_index(BACK_FACE  )].setPosNormalCell(cell->index());
    m_faces[cell->face_index(BACK_FACE  )].setNormalDirection(NORMAL_Y);

    m_faces[cell->face_index(BOTTOM_FACE)].setNegNormalCell(cell->index());
    m_faces[cell->face_index(BOTTOM_FACE)].setNormalDirection(NORMAL_Z);

    m_faces[cell->face_index(UP_FACE    )].setPosNormalCell(cell->index());
    m_faces[cell->face_index(UP_FACE    )].setNormalDirection(NORMAL_Z);

  }

}

Face_It DealOrthoMesh::end

(

)

[inline]

Definition at line 55 of file dealorthomesh.h.

{return m_faces.end();}

double DealOrthoMesh::faceArea

(

FaceDirection3D

face_no

)

Get the area of the face given the direction of the face relative to the cell that owns it

Parameters:

face_no

index of the face relative to the cell that owns it (LEFT_FACE,RIGHT_FACE,FRONT_FACE....), see FaceDirection3D.

Returns:

Definition at line 300 of file dealorthomesh.cpp.

{
  return m_FacesAreaFromCellDirection[face_no];

}

double DealOrthoMesh::faceArea

(

const Face_It &

face

)

Get the area of the face.

Parameters:

face

The face to get measure

Returns:

The area of the face

Definition at line 122 of file dealorthomesh.cpp.

{
        return m_FacesArea[face->getNormalOrientation()];
}

double DealOrthoMesh::faceAreaPerCellVol

(

const Face_It &

face

)

Get the area of the face divided by the volume of the cell

Parameters:

Face

Returns:

Definition at line 132 of file dealorthomesh.cpp.

{
  return m_FacesAreaPerVolume[face->getNormalOrientation()];
}

double DealOrthoMesh::faceValue	(	const Face_It &	face,
		const VecDouble &	fValues
	)

Get the value of the face

Parameters:

	fValues	Vector indexed by the faces index containing the values of the faces.
	face	Face to get the value

Returns:

The value fValues(face->index())

Definition at line 148 of file dealorthomesh.cpp.

{
  assert( (unsigned) (face-begin()) < fValues.size());
  return fValues(face-begin());
}

Point3D DealOrthoMesh::getBarycenter

(

Face &

face

)

Definition at line 367 of file dealorthomesh.cpp.

{
  Point3D V = face->vertex(BL_VERTEX);
  V+=face->vertex(UR_VERTEX);
  V/=2.0;
  return V;
}

double DealOrthoMesh::getCellMeasure

(

)

const [inline]

Definition at line 64 of file dealorthomesh.h.

{return m_Vol;}

double DealOrthoMesh::getCellVolume

(

)

[inline]

Definition at line 60 of file dealorthomesh.h.

{return m_Vol;}

double DealOrthoMesh::getDX

(

)

const [inline]

Definition at line 61 of file dealorthomesh.h.

{return m_dX;}

double DealOrthoMesh::getDY

(

)

const [inline]

Definition at line 62 of file dealorthomesh.h.

{return m_dY;}

double DealOrthoMesh::getDZ

(

)

const [inline]

Definition at line 63 of file dealorthomesh.h.

{return m_dZ;}

void DealOrthoMesh::getFacesInYZSlab	(	double	X,
		VecIndex &	fIndices
	)

This function is designed for distributed rectangle domains. In this way the domain are partitioned in slices cutted in the YZ plane alon the X axis. Depending of the distribution of elements in each subdomain the indices of the contact faces between two subdomains have different indices To communicate data between the domains we need to know the indices of the contact faces for each of the subdomains. To do this we use the function above which retrieves the faces indices in a YZ Slab and put in the vector parameter fIndices. The order of the indices are based in a geometry aproach. The first entry in the face index vector fIndices is the face with the braycenter having the lowest Y Z cordinate values. Than the cordinates are incremented in the Y direction than Z direction. In this way the faces in the vector of indices are ordered geometrically. So for the same YZ slab belonging to two different subdomains this method returns the indices with the same geometrically order. For example, if fInd1 contains the indices of the faces in a Slab X=20 in subdomain 1 and fInd2 contains the indices of the faces in the subdomain 2 for the Slab X=20, assuming that the two subdomain share common faces in this Slab, we garantee that fInd1[i] and fInd2[i] are the indices of two faces geometrically equal with the same location and format in 3D space.

Parameters:

	X	the X coordinate of the slab in the YZ plane
	fIndices	Vector to contain the indices of the faces in the YZ plane ordered such that the fIndices[i] correspond to the ith face counting from front to back, bottom to up (Y axis first, Z second)

Definition at line 328 of file dealorthomesh.cpp.

{
  Cell cell = beginCell();

  double x_tol = getDX()/4.0;
  fIndices.reserve(numElems(1)*numElems(2));

  //First find the first face in the slab
  Face face = cell->face(LEFT_FACE);
  FaceDirection3D faceDir;
  if (NumericMethods::a_equal(getBarycenter(face)[0],X,x_tol))
    faceDir=LEFT_FACE;
  else
  {
    faceDir = RIGHT_FACE;
    face=cell->face(RIGHT_FACE);
    while (!NumericMethods::a_equal(getBarycenter(face)[0],X,x_tol))
    {
      cell = cell->neighbor(RIGHT_CELL);
      if (cell.state() != IteratorState::valid)
        return; //Oooops did not find the slab in the domain
      face = cell->face(RIGHT_FACE);
    }
  }

  //Found the slab
  //Now run in Z direction
  for (;cell.state()==IteratorState::valid;cell=cell->neighbor(UP_CELL))
  {
    //For each Cell in Z, run in Y direction
    for(Cell cellY=cell;cellY.state()==IteratorState::valid;cellY=cellY->neighbor(BACK_CELL))
      fIndices.push_back(cellY->face_index(faceDir));
  }



}

double DealOrthoMesh::getIntegralAtCells

(

const VecDouble &

cValues

)

const

Reimplemented from DealBase.

Definition at line 242 of file dealorthomesh.cpp.

{
  assert(cValues.size() == numCells());
  double acum=0.0;
  for (unsigned i=0;i<cValues.size();i++)
  {
    acum+=cValues(i);
  }
  return acum*getCellMeasure();
}

double DealOrthoMesh::getL2NormAtCells

(

const VecDouble &

cValues

)

const

Reimplemented from DealBase.

Definition at line 224 of file dealorthomesh.cpp.

{
  assert(cValues.size() == numCells());
  double cellArea = getCellMeasure();
  Cell endc = endCell();
  double acum=0;
  for (Cell cell=beginCell();cell!=endc;cell++)
  {
    acum+=fabs(getCentralValue(cell,cValues));
  }
  return acum*cellArea;
}

Point3D DealOrthoMesh::getP

(

)

const [inline]

Definition at line 47 of file dealorthomesh.h.

{return P;}

Point3D DealOrthoMesh::getQ

(

)

const [inline]

Definition at line 48 of file dealorthomesh.h.

{return Q;}

bool DealOrthoMesh::nonZeroInwardNormalComponenentIsPositive

(

FaceDirection3D

face_no

)

This is a very specific function and used just in the mixed formulation. So dont waste too much time with it, since its functionality is very restricted and used just one time in all the code. Give the position of the boundary face relative to the cell that contains it (e.g LEFT_FACE, BOTTOM_FACE..... ) this function returns true if the non zero component of the normal of the face pointing inward the domain is positive. Note that this makes sense only for meshes which the sides of the elements are parallel to the axis. Otherwise the normals will have more than one non-zero component. This method is used for classes that implements the MixedFormulation and receive a scalar function as boundary conditions for the velocities fields. Values of the scalar function represent the projection of the velocity field with the normal in the boundary face pointing in the direction of the domain

Parameters:

face_no

index of the face relative to the cell that owns it.

Returns:

Definition at line 286 of file dealorthomesh.cpp.

{
  //Remember that LEFT_FACE=0,RIGHT_FACE=1,FRONT_FACE=2,BACK_FACE=3,BOTTOM_FACE=4,UP_FACE=5
  static bool a[] = {1,0,1,0,1,0};
  assert(face_no < 6);
  return a[face_no];


}

int DealOrthoMesh::numElems

(

unsigned

i

)

[inline]

Definition at line 53 of file dealorthomesh.h.

{assert(i<3);return nElems[i];}

int DealOrthoMesh::numFacesAtBoundary

(

)

[inline]

Definition at line 52 of file dealorthomesh.h.

{assert(n_boundary_faces > 0);return n_boundary_faces;}

void DealOrthoMesh::projectCentralValuesAtVertices	(	const VecDouble &	cValues,
		VecDouble &	vValues
	)

Given a solution (cValues) for each cell of the mesh, interpolate these values at the vertices and store it in the vector vValues indexed by the vertices indexes. In the case of the DealOrthoMesh, the values at vertices are simple the arithmetic media of the cells` values surrounding the vertices

Parameters:

	vValues	To contain the values at vertices
	cValues	Values at cells

Definition at line 168 of file dealorthomesh.cpp.

{
  //Check the size of the vectors;
  assert(vValues.size() == numVertices());
  assert(cValues.size() == numCells());

  //This vector is a counter of the number of cells contributing to each vertice
  //It is initialized as zero.
  std::vector<unsigned> nCellsPerVertice(numVertices(),0);

  //Initialize the values of the vector vValues.
  vValues=0.0;

  Cell endc = endCell();
  for (Cell cell = beginCell();cell != endc;cell++)
  {
    vValues(cell->vertex_index(VERTEX_000)) += cValues(cell->index());
    vValues(cell->vertex_index(VERTEX_001)) += cValues(cell->index());
    vValues(cell->vertex_index(VERTEX_010)) += cValues(cell->index());
    vValues(cell->vertex_index(VERTEX_011)) += cValues(cell->index());
    vValues(cell->vertex_index(VERTEX_100)) += cValues(cell->index());
    vValues(cell->vertex_index(VERTEX_101)) += cValues(cell->index());
    vValues(cell->vertex_index(VERTEX_110)) += cValues(cell->index());
    vValues(cell->vertex_index(VERTEX_111)) += cValues(cell->index());

    nCellsPerVertice[cell->vertex_index(VERTEX_000)]++;
    nCellsPerVertice[cell->vertex_index(VERTEX_001)]++;
    nCellsPerVertice[cell->vertex_index(VERTEX_010)]++;
    nCellsPerVertice[cell->vertex_index(VERTEX_011)]++;
    nCellsPerVertice[cell->vertex_index(VERTEX_100)]++;
    nCellsPerVertice[cell->vertex_index(VERTEX_101)]++;
    nCellsPerVertice[cell->vertex_index(VERTEX_110)]++;
    nCellsPerVertice[cell->vertex_index(VERTEX_111)]++;

  }

  //Now in vValues we have the sum of all sunrounding cells
  //and in nCellsPerVertice the number of cells sunrounding the vertices.
  //Rember that these number of cells sunrounding a vertice can differ
  //for vertices at boundary.
  for (unsigned i =0;i<vValues.size();i++)
      vValues(i)/=nCellsPerVertice[i];
}

---

Member Data Documentation

double DealOrthoMesh::m_dX [private]

Step in X

Definition at line 27 of file dealorthomesh.h.

double DealOrthoMesh::m_dY [private]

Step in Y

Definition at line 28 of file dealorthomesh.h.

double DealOrthoMesh::m_dZ [private]

Step in Z

Definition at line 29 of file dealorthomesh.h.

std::vector<FaceInf> DealOrthoMesh::m_faces [private]

Definition at line 25 of file dealorthomesh.h.

double DealOrthoMesh::m_FacesArea[3] [private]

Area for the faces in the planes YZ,XZ,XY respectively at each cell

Definition at line 30 of file dealorthomesh.h.

double DealOrthoMesh::m_FacesAreaFromCellDirection[6] [private]

Area for the faces indexed by the direction of the faces relative to the cells that owns them (eg LEFT_FACE, RIGHT_FACE..., see VerticeDirection3D at (globals.h)).

Definition at line 31 of file dealorthomesh.h.

double DealOrthoMesh::m_FacesAreaPerVolume[3] [private]

Area diveded by the cell`s volume for the faces in the planes YZ,XZ,XY respectively at each cell

Definition at line 32 of file dealorthomesh.h.

double DealOrthoMesh::m_Vol [private]

Volume of cell

Definition at line 33 of file dealorthomesh.h.

int DealOrthoMesh::n_boundary_faces [private]

Definition at line 34 of file dealorthomesh.h.

unsigned DealOrthoMesh::nElems[3] [private]

Definition at line 26 of file dealorthomesh.h.

Point3D DealOrthoMesh::P [private]

Definition at line 35 of file dealorthomesh.h.

Point3D DealOrthoMesh::Q [private]

Definition at line 35 of file dealorthomesh.h.

---

The documentation for this class was generated from the following files:

• dealorthomesh.h
• dealorthomesh.cpp
