FaceFluxCO2Brine Class Reference

#include <facefluxco2brine.h>

Inheritance diagram for FaceFluxCO2Brine:
Inheritance graph
[legend]

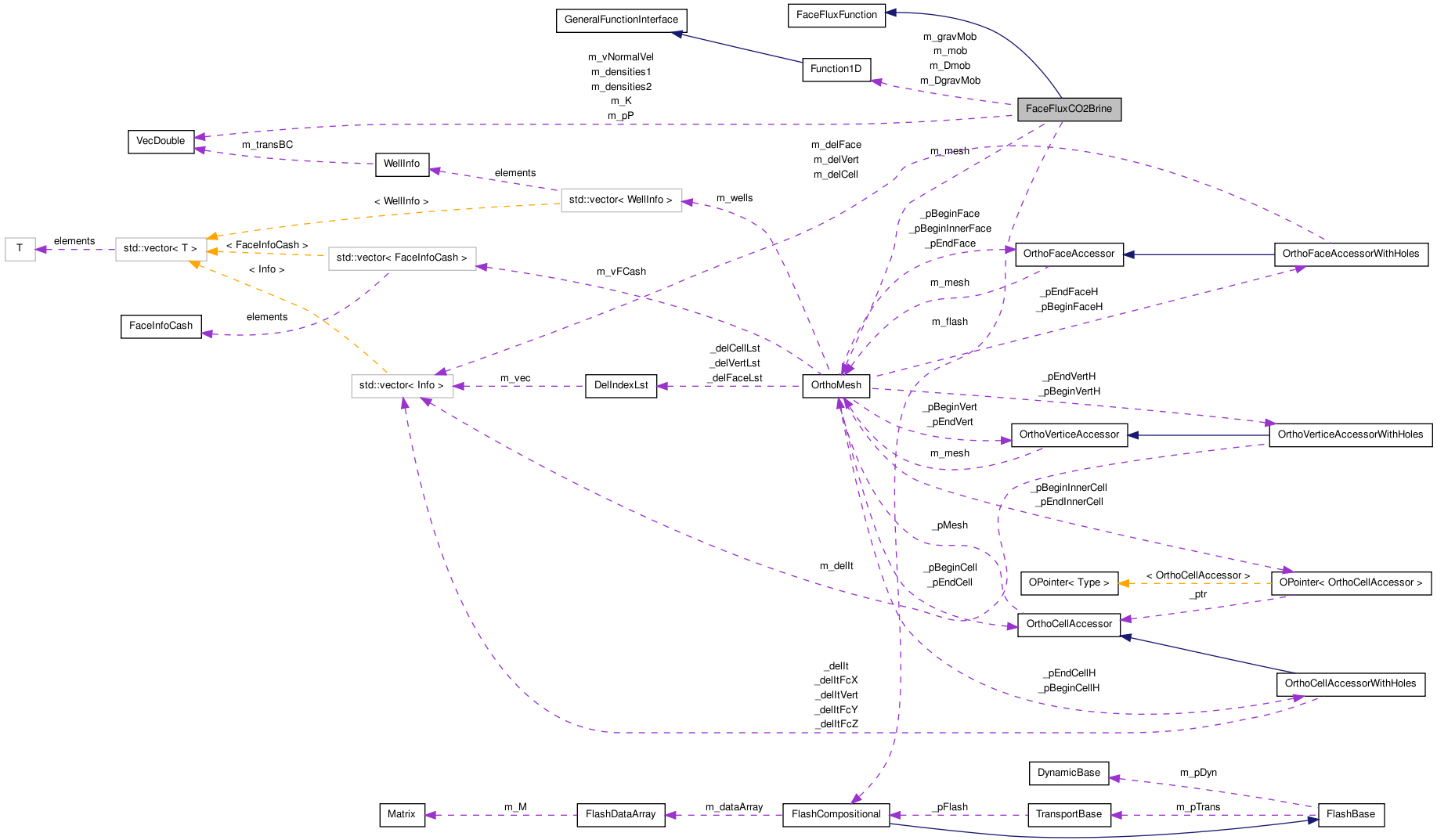

Collaboration diagram for FaceFluxCO2Brine:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 FaceFluxCO2Brine (OrthoMesh &mesh, FlashCompositional &flash, const VecDouble &K, GeneralFunctionInterface &fMob, GeneralFunctionInterface &fDMob, GeneralFunctionInterface &fGrav, GeneralFunctionInterface &fDGrav, double grav)
virtual ~FaceFluxCO2Brine ()
virtual const VecDouble & getPressure ()
virtual const VecDouble & getK ()
virtual void updateDynamicData (DynamicBase &dynMod)
virtual void maxGlobalCharVelocity (double vel[3])
virtual void transformToComponentMoles (VecDouble &v1)

Protected Member Functions

virtual void fluxAtFace (VecDouble &vFlux, const FaceInfo &face, const VecDouble &Q1, const VecDouble &Q2)
virtual double maxLocalCharVelocity (const FaceInfo &face, const VecDouble &Q1, const VecDouble &Q2)

Private Attributes

FlashCompositional & m_flash
Function1D & m_mob
Function1D & m_gravMob
Function1D & m_Dmob
Function1D & m_DgravMob
VecDouble m_vNormalVel
VecDouble const VecDouble * m_pP
const VecDouble & m_K
VecDouble m_densities1
VecDouble m_densities2
double m_Sw1
double m_Sw2
double m_cell1
double m_cell2
double m_grav
OrthoMesh & m_mesh

Detailed Description

Definition at line 17 of file facefluxco2brine.h.

Constructor & Destructor Documentation

FaceFluxCO2Brine::FaceFluxCO2Brine ( OrthoMesh &  mesh,
FlashCompositional &  flash,
const VecDouble &  K,
GeneralFunctionInterface &  fMob,
GeneralFunctionInterface &  fDMob,
GeneralFunctionInterface &  fGrav,
GeneralFunctionInterface &  fDGrav,
double  grav
)

Definition at line 5 of file facefluxco2brine.cpp.

00006   :FaceFluxFunction(3),m_flash(flash),
00007    m_mob    (dynamic_cast<Function1D&>(fMob)),
00008    m_gravMob(dynamic_cast<Function1D&>(fGrav)),
00009    m_Dmob    (dynamic_cast<Function1D&>(DfMob)),
00010    m_DgravMob(dynamic_cast<Function1D&>(DfGrav)),
00011    m_pP(NULL),m_K(K),m_grav(grav),m_mesh(mesh)
00012 {
00013   assert(flash.numPhases()==2);
00014   m_vNormalVel.reinit(mesh.numFaces());
00015   assert(m_grav>=0.);
00016   //Allocate the vectors of densities
00017   m_densities1.reinit(2);
00018   m_densities2.reinit(2);
00019   std::ofstream file("mobGrav.dat");
00020   for (double x=0;x<=1;x+=0.01)
00021   {
00022     file << x << " " << m_gravMob(x) << std::endl;
00023   }
00024
00025 }

virtual FaceFluxCO2Brine::~FaceFluxCO2Brine (  )  [inline, virtual]

Definition at line 41 of file facefluxco2brine.h.

00041 {}

Member Function Documentation

void FaceFluxCO2Brine::fluxAtFace ( VecDouble &  vFlux,
const FaceInfo &  face,
const VecDouble &  Q1,
const VecDouble &  Q2
) [protected, virtual]

(phasesVol1(0)+phasesVol1(1));

(phasesVol2(0)+phasesVol2(1));

Reimplemented from FaceFluxFunction.

Definition at line 29 of file facefluxco2brine.cpp.

00030 {
00031   assert(vFlux.size());
00032   assert((unsigned) face.index < m_vNormalVel.size());
00033   static FlashData data_1(2,3,NULL),data_2(2,3,NULL);
00034   static FlashData data_3(2,3),data_4(2,3);
00035   static FlashData data1(2,3,NULL),data2(2,3,NULL);
00036   static VecDouble phasesVol1(2);
00037   static VecDouble phasesVol2(2);
00038   static VecDouble vFlux1(3);
00039   static VecDouble vFlux2(3);
00040   const VecDouble &P = getPressure();
00041   double K1 = getK()(face.cell1);
00042   double K2 = getK()(face.cell2);
00043   double vel = m_vNormalVel(face.index);
00044   double gravFlux1;
00045   double gravFlux2;
00046   double P1=P(face.cell1);
00047   double P2=P(face.cell2);
00048   if (!face.at_boundary)
00049   {
00050     m_flash.flash(face.cell1,data_1);
00051     m_flash.flash(face.cell2,data_2);
00052     data1.setData(data_1);
00053     data2.setData(data_2);
00054   }
00055   else
00056   {
00057     if (Q1 == Q2)
00058     {
00059         m_flash.flash(face.cell1,data_1);
00060         m_flash.flash(face.cell2,data_2);
00061         data1.setData(data_1);
00062         data2.setData(data_2);
00063     }
00064     else
00065     {
00066       m_flash.flash(P1,Q1,data_3);
00067       m_flash.flash(P2,Q2,data_4);
00068       data1.setData(data_3);
00069       data2.setData(data_4);
00070     }
00071   }
00072   m_flash.getPhasesVolume(P1,data1,phasesVol1);
00073   m_Sw1=phasesVol1(0);
00074   data1.getPhasesDensities(m_densities1,m_flash.getComponentsMolarMass(),phasesVol1);
00075
00076
00077   m_flash.getPhasesVolume(P2,data2,phasesVol2);
00078   m_Sw2=phasesVol2(0);
00079   data2.getPhasesDensities(m_densities2,m_flash.getComponentsMolarMass(),phasesVol2);
00080
00081   //  if (face.normal == OrthoMesh::NORMAL_Z && (!(face.at_boundary) || (face.at_boundary && vel < 0  )
00082   if (face.normal == OrthoMesh::NORMAL_Z && !(face.at_boundary))
00083   {
00084     gravFlux1=K1*m_gravMob(m_Sw1)*(m_densities1(1)-m_densities1(0))*m_grav;
00085     gravFlux2=K2*m_gravMob(m_Sw2)*(m_densities2(1)-m_densities2(0))*m_grav;
00086     //printf("%g %g\n",gravFlux1,gravFlux2);
00087   }
00088   else
00089   {
00090     gravFlux1=gravFlux2=0.0;
00091   }
00092   double vel0 = m_mob(m_Sw1)*vel + gravFlux1;
00093   double vel1 = vel-vel0;
00094   vFlux(0)=_div(data1.getMoles(0,0),phasesVol1(0))*vel0 + _div(data1.getMoles(1,0),phasesVol1(1))*vel1;
00095   vFlux(1)=_div(data1.getMoles(0,1),phasesVol1(0))*vel0 + _div(data1.getMoles(1,1),phasesVol1(1))*vel1;
00096   vFlux(2)=_div(data1.getMoles(0,2),phasesVol1(0))*vel0 + 0;
00097
00098
00099
00100   vel0=m_mob(m_Sw2)*vel + gravFlux2;
00101   vel1=vel-vel0;
00102
00103   vFlux(0)+=_div(data2.getMoles(0,0),phasesVol2(0))*vel0 + _div(data2.getMoles(1,0),phasesVol2(1))*vel1;
00104   vFlux(1)+=_div(data2.getMoles(0,1),phasesVol2(0))*vel0 + _div(data2.getMoles(1,1),phasesVol2(1))*vel1;
00105   vFlux(2)+=_div(data2.getMoles(0,2),phasesVol2(0))*vel0 + 0;
00106
00107   assert(data2.getMoles(1,2) == 0.0);
00108   assert(data1.getMoles(1,2) == 0.0);
00109
00110   vFlux*=0.5;
00111
00112   /*  if (face.index == 0)
00113   {
00114     printf("\ndata\n");
00115     Q1.print(std::cout,8);
00116     Q2.print(std::cout,8);
00117     vFlux.print(std::cout,8);
00118     data1.print();
00119     data2.print();
00120     printf("Sat: %g",phasesVol1(0));
00121     printf("\n");
00122     }*/
00123
00124   //Store the cells just to check
00125   m_cell1=face.cell1;
00126   m_cell2=face.cell2;
00127
00128 }

virtual const VecDouble& FaceFluxCO2Brine::getK (  )  [inline, virtual]

Definition at line 48 of file facefluxco2brine.h.

00048 {return m_K;}

virtual const VecDouble& FaceFluxCO2Brine::getPressure (  )  [inline, virtual]

Definition at line 47 of file facefluxco2brine.h.

00047 {assert(m_pP);return *m_pP;}

void FaceFluxCO2Brine::maxGlobalCharVelocity ( double  vel[3]  )  [virtual]

<

Reimplemented from FaceFluxFunction.

Definition at line 175 of file facefluxco2brine.cpp.

00176 {
00177   static bool bFirstTime = true;
00178   static double gMaxMobGrad;
00179   static double gMaxGravTerm;
00180   static VecDouble Vdt(3);
00181   if (bFirstTime)
00182   {
00183     double minP=NumericMethods::vectorMinValue(getPressure());
00184     double maxK=NumericMethods::vectorMaxValue(getK());
00185     bFirstTime=false;
00186     VecDouble totalComponents(3),phasesVolume(2);
00187     VecDouble vDensities(2);
00188     FlashData data(m_flash.numPhases(),m_flash.numComponents());
00189     totalComponents(0)=1;
00190     totalComponents(1)=1;
00191     totalComponents(2)=0;
00192     m_flash.flash(minP,totalComponents,data);
00193     m_flash.getPhasesVolume(minP,data,phasesVolume);
00194     data.getPhasesDensities(vDensities,m_flash.getComponentsMolarMass(),phasesVolume);
00195     assert(vDensities(0) != 0.0 && vDensities(1) != 0.0);
00196
00197     gMaxMobGrad=m_Dmob.getMaxNorm(0,1);
00198     gMaxGravTerm=fabs(maxK*(vDensities(0)-vDensities(1))*m_DgravMob.getMaxNorm(0,1)*m_grav);
00199
00200     printf("Max char velocity calculation\n");
00201     printf("\tDensities %g %g\n",vDensities(0),vDensities(1));
00202     printf("\tMax K %g\n",maxK);
00203     printf("\tMax Mobility Grad %g\n",gMaxMobGrad);
00204     printf("\tMax Grad Grav Term %g\n",gMaxGravTerm);
00205     printf("\tMax Grad Mobm %g\n",m_DgravMob.getMaxNorm(0,1));
00206
00207
00208   }
00209   //double maxVel=NumericMethods::vectorMaxAbsValue(m_vNormalVel);
00210
00211   m_mesh.getMaxAbsVelocitiesInFacesByComponents(Vdt,m_vNormalVel);
00212
00213   vel[X]= Vdt(X)*gMaxMobGrad;
00214   vel[Y]= Vdt(Y)*gMaxMobGrad;
00215   vel[Z]= Vdt(Z)*gMaxMobGrad + gMaxGravTerm;
00216   //  printf("Vdt: %g %g %g\n",Vdt(X),Vdt(Y),Vdt(Z));
00217   printf("Char Vel %g %g %g\n",vel[X],vel[Y],vel[Z]);
00218   return;
00219 }

double FaceFluxCO2Brine::maxLocalCharVelocity ( const FaceInfo &  face,
const VecDouble &  Q1,
const VecDouble &  Q2
) [protected, virtual]

Reimplemented from FaceFluxFunction.

Definition at line 143 of file facefluxco2brine.cpp.

00144 {
00145   assert(m_cell1==face.cell1);
00146   assert(m_cell2==face.cell2);
00147   if (m_Sw1 > m_Sw2)
00148     std::swap(m_Sw1,m_Sw2);
00149   double grav1 = getK()(face.cell1)*fabs(m_densities1(0)-m_densities1(1))*m_grav;
00150   double grav2 = getK()(face.cell2)*fabs(m_densities2(0)-m_densities2(1))*m_grav;
00151
00152   double mobMaxNormGrad=m_Dmob.getMaxNorm(m_Sw1,m_Sw2);
00153   if (mobMaxNormGrad == 0)
00154     mobMaxNormGrad=1;
00155   if (face.normal == OrthoMesh::NORMAL_Z)
00156     return fabs(m_vNormalVel(face.index)*mobMaxNormGrad) + fabs(m_DgravMob.getMaxNorm(m_Sw1,m_Sw2)*std::max(grav1,grav2));
00157   else
00158     return fabs(m_vNormalVel(face.index)*mobMaxNormGrad);
00159
00160 }

void FaceFluxCO2Brine::transformToComponentMoles ( VecDouble &  v1  )  [virtual]

Definition at line 168 of file facefluxco2brine.cpp.

00169 {
00170   assert(v1.size()==3);
00171   return;
00172 }

void FaceFluxCO2Brine::updateDynamicData ( DynamicBase &  dynMod  )  [virtual]

Reimplemented from FaceFluxFunction.

Definition at line 136 of file facefluxco2brine.cpp.

00137 {
00138   dynMod.getNormalVelocityAtFaces(m_vNormalVel);
00139   m_pP=&dynMod.getPressureAtCells();
00140 }

Member Data Documentation

double FaceFluxCO2Brine::m_cell1 [private]

Definition at line 31 of file facefluxco2brine.h.

double FaceFluxCO2Brine::m_cell2 [private]

Definition at line 31 of file facefluxco2brine.h.

VecDouble FaceFluxCO2Brine::m_densities1 [private]

Definition at line 30 of file facefluxco2brine.h.

VecDouble FaceFluxCO2Brine::m_densities2 [private]

Definition at line 30 of file facefluxco2brine.h.

Function1D & FaceFluxCO2Brine::m_DgravMob [private]

Definition at line 21 of file facefluxco2brine.h.

Function1D & FaceFluxCO2Brine::m_Dmob [private]

Definition at line 21 of file facefluxco2brine.h.

FlashCompositional& FaceFluxCO2Brine::m_flash [private]

Definition at line 20 of file facefluxco2brine.h.

double FaceFluxCO2Brine::m_grav [private]

Definition at line 32 of file facefluxco2brine.h.

Function1D & FaceFluxCO2Brine::m_gravMob [private]

Definition at line 21 of file facefluxco2brine.h.

const VecDouble& FaceFluxCO2Brine::m_K [private]

Definition at line 29 of file facefluxco2brine.h.

OrthoMesh& FaceFluxCO2Brine::m_mesh [private]

Definition at line 33 of file facefluxco2brine.h.

Function1D& FaceFluxCO2Brine::m_mob [private]

Definition at line 21 of file facefluxco2brine.h.

VecDouble const VecDouble* FaceFluxCO2Brine::m_pP [private]

Definition at line 27 of file facefluxco2brine.h.

double FaceFluxCO2Brine::m_Sw1 [private]

Definition at line 31 of file facefluxco2brine.h.

double FaceFluxCO2Brine::m_Sw2 [private]

Definition at line 31 of file facefluxco2brine.h.

VecDouble FaceFluxCO2Brine::m_vNormalVel [private]

Definition at line 27 of file facefluxco2brine.h.

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on Sun Apr 8 23:13:03 2012 for CO2INJECTION by  doxygen 1.6.3
