FaceFluxSimpleBlackOil Class Reference

#include <facefluxsimpleblackoil.h>

Inheritance diagram for FaceFluxSimpleBlackOil:

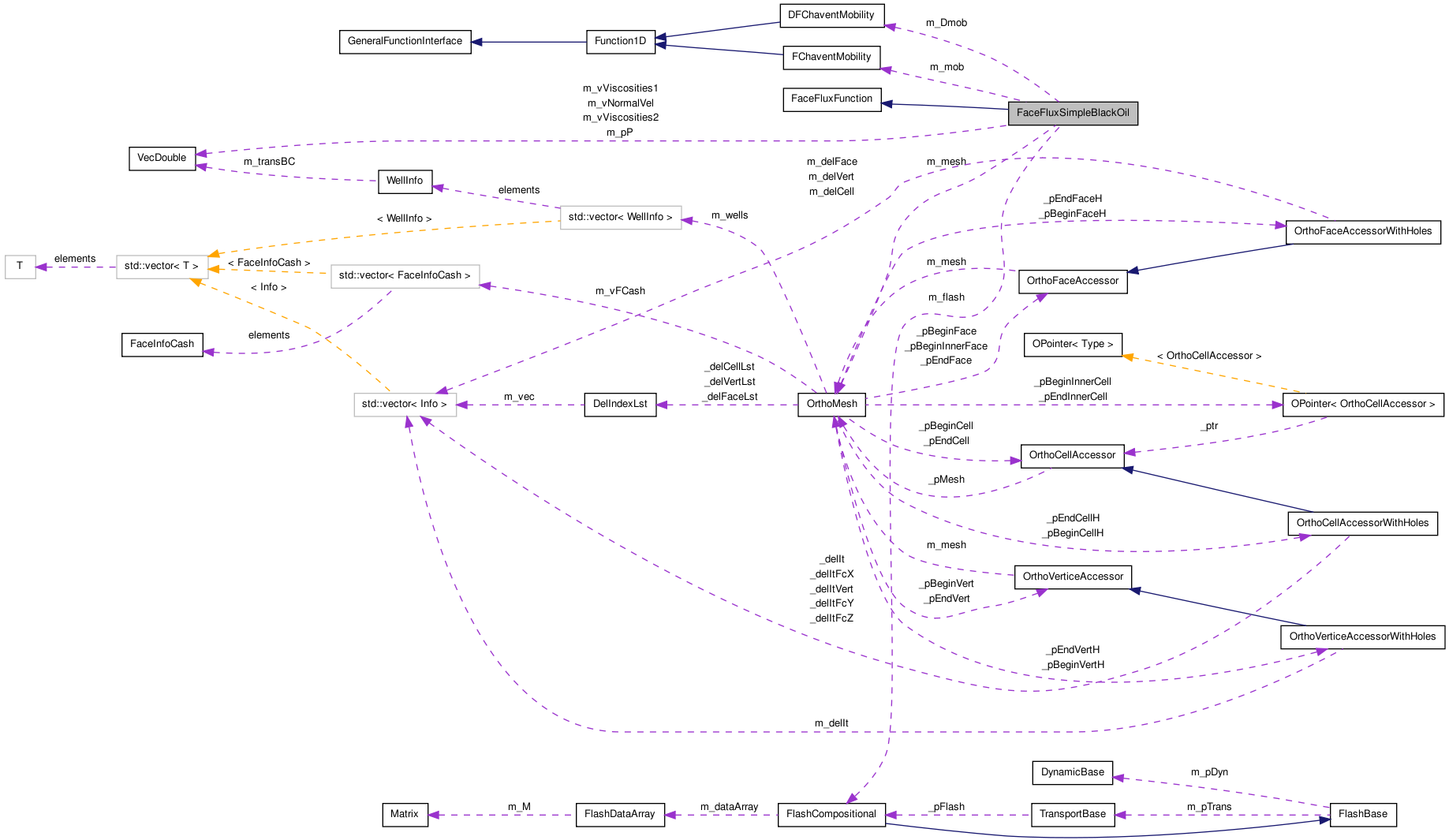

Collaboration diagram for FaceFluxSimpleBlackOil:

Public Member Functions
	FaceFluxSimpleBlackOil (OrthoMesh &mesh, FlashCompositional &flash)
	~FaceFluxSimpleBlackOil ()
virtual void	fluxAtFace (VecDouble &vFlux, const FaceInfo &face, const VecDouble &Q1, const VecDouble &Q2)
virtual double	maxLocalCharVelocity (const FaceInfo &face, const VecDouble &Q1, const VecDouble &Q2)
virtual void	updateDynamicData (DynamicBase &dynMod)
virtual void	maxGlobalCharVelocity (double vel[3])
virtual void	transformToFlash (VecDouble &vec)
virtual const VecDouble &	getPressure ()
Protected Attributes
OrthoMesh &	m_mesh
FlashCompositional &	m_flash
FChaventMobility	m_mob
DFChaventMobility	m_Dmob
VecDouble	m_vNormalVel
const VecDouble *	m_pP
double	m_Sw1
double	m_Sw2
double	m_cell1
double	m_cell2
VecDouble	m_vViscosities1
VecDouble	m_vViscosities2
bool	m_bUnsaturated
double	m_cl11
double	m_cl12
double	m_cl21
double	m_cl22
double	m_cd11
double	m_cd12
double	m_cd21
double	m_cd22

Detailed Description

Definition at line 14 of file facefluxsimpleblackoil.h.

Constructor & Destructor Documentation

FaceFluxSimpleBlackOil::FaceFluxSimpleBlackOil	(	OrthoMesh &	mesh,
		FlashCompositional &	flash
	)

Definition at line 4 of file facefluxsimpleblackoil.cpp.

00004                                                                                         :FaceFluxFunction(2),m_mesh(mesh),m_flash(flash),m_mob(1,1,0,0),m_Dmob(1,1,0,0),m_pP(NULL),m_vViscosities1(2),m_vViscosities2(2)
00005 {
00006   assert(flash.numPhases()==2);
00007   assert(flash.numComponents() == 2);
00008   m_vNormalVel.reinit(mesh.numFaces());
00009 }

FaceFluxSimpleBlackOil::~FaceFluxSimpleBlackOil ( ) [inline]

Definition at line 33 of file facefluxsimpleblackoil.h.

00033 {}

Member Function Documentation

void FaceFluxSimpleBlackOil::fluxAtFace	(	VecDouble &	vFlux,
		const FaceInfo &	face,
		const VecDouble &	Q1,
		const VecDouble &	Q2
	)			`[virtual]`

(phasesVolume(0)+phasesVolume(1));

Reimplemented from FaceFluxFunction.

Definition at line 47 of file facefluxsimpleblackoil.cpp.

00048 {
00049   assert(vFlux.size()==2);
00050   assert((unsigned) face.index < m_vNormalVel.size());
00051   static FlashData data1(2,2),data2(2,2);
00052   static VecDouble phasesVolume(2);
00053   static VecDouble vFlux1(2);
00054   static VecDouble vFlux2(2);
00055   const VecDouble &P = getPressure();
00056   m_bUnsaturated=false;
00057
00058   m_flash.flash(P(face.cell1),Q1,data1);
00059   m_flash.flash(P(face.cell2),Q2,data2);
00060
00061   m_flash.getPhasesViscosities(P(face.cell1),data1,m_vViscosities1);
00062   m_flash.getPhasesViscosities(P(face.cell2),data2,m_vViscosities2);
00063
00064   m_flash.getPhasesVolume(P(face.cell1),data1,phasesVolume);
00065   m_Sw1=phasesVolume(0);
00066
00067
00068   m_mob.setParameters(m_vViscosities1);
00069   double mobW=m_mob(m_Sw1);
00070   vFlux(0)=0.0;
00071   vFlux(1)=0.0;
00072
00073   if (phasesVolume(0) != 0.0)
00074   {
00075     m_cl11=data1.getMoles(0,0)/phasesVolume(0);
00076     m_cl21=data1.getMoles(0,1)/phasesVolume(0);
00077     vFlux(0)=data1.getMoles(0,0)/phasesVolume(0)*mobW;
00078     vFlux(1)=data1.getMoles(0,1)/phasesVolume(0)*mobW;
00079   }
00080   else
00081     m_cl11=m_cl21=0;
00082
00083   if (phasesVolume(1) != 0.0)
00084   {
00085     m_cl12=data1.getMoles(1,0)/phasesVolume(1);
00086     m_cl22=data1.getMoles(1,1)/phasesVolume(1);
00087     vFlux(0)+=data1.getMoles(1,0)/phasesVolume(1)*(1.0-mobW);
00088     vFlux(1)+=data1.getMoles(1,1)/phasesVolume(1)*(1.0-mobW);
00089   }
00090   else
00091     m_cl12=m_cl22=0;
00092
00093   m_flash.getPhasesVolume(P(face.cell2),data2,phasesVolume);
00094   m_Sw2=phasesVolume(0);
00095   mobW=m_mob(m_Sw2);
00096   m_mob.setParameters(m_vViscosities2);
00097
00098   if (phasesVolume(0) != 0.0)
00099   {
00100     m_cd11=data2.getMoles(0,0)/phasesVolume(0);
00101     m_cd21=data2.getMoles(0,1)/phasesVolume(0);
00102     vFlux(0)+=data2.getMoles(0,0)/phasesVolume(0)*mobW;
00103     vFlux(1)+=data2.getMoles(0,1)/phasesVolume(0)*mobW;
00104   }
00105   else
00106     m_cd11=m_cd21=0;
00107
00108   if (phasesVolume(1) != 0.0)
00109   {
00110     m_cd12=data2.getMoles(1,0)/phasesVolume(1);
00111     m_cd22=data2.getMoles(1,1)/phasesVolume(1);
00112     vFlux(0)+=data2.getMoles(1,0)/phasesVolume(1)*(1.0-mobW);
00113     vFlux(1)+=data2.getMoles(1,1)/phasesVolume(1)*(1.0-mobW);
00114   }
00115   else
00116     m_cd12=m_cd22=0;
00117
00118   vFlux*= m_vNormalVel(face.index)/2.0;
00119
00120   if (data1.getMoles(1,1) == 0.0 || data2.getMoles(1,1)==0.0)
00121   {
00122     //printf("Unsaturated at %g\n",faceIt->barycenter()[0]);
00123     m_bUnsaturated=true;
00124   }
00125
00126
00127 //Store the cells just to check at getLocalCharVelocity
00128   m_cell1=face.cell1;
00129   m_cell2=face.cell2;
00130 }

virtual const VecDouble& FaceFluxSimpleBlackOil::getPressure ( ) [inline, virtual]

Definition at line 44 of file facefluxsimpleblackoil.h.

00044 {assert(m_pP);return *m_pP;}

void FaceFluxSimpleBlackOil::maxGlobalCharVelocity ( double vel[3] ) [virtual]

Reimplemented from FaceFluxFunction.

Reimplemented in FaceFluxSimpleBlackOilMass.

Definition at line 24 of file facefluxsimpleblackoil.cpp.

00025 {
00026   double maxVel=NumericMethods::vectorMaxAbsValue(m_vNormalVel);
00027   double minP=NumericMethods::vectorMinAbsValue(getPressure());
00028   static FlashData data(2,2);
00029   data.allocateOwnMemory();
00030   m_flash.getPhasesViscosities(minP,data,m_vViscosities1);
00031   m_Dmob.setParameters(m_vViscosities1);
00032   m_Dmob.updateInflectionPoint();
00033   vel[X]= maxVel*m_Dmob.getMaxNorm(0,1);
00034   vel[Y]=0;
00035   vel[Z]=0;
00036   return;
00037
00038 }

double FaceFluxSimpleBlackOil::maxLocalCharVelocity	(	const FaceInfo &	face,
		const VecDouble &	Q1,
		const VecDouble &	Q2
	)			`[virtual]`

Reimplemented from FaceFluxFunction.

Definition at line 133 of file facefluxsimpleblackoil.cpp.

00134 {
00135   assert(m_cell1==face.cell1);
00136   assert(m_cell2==face.cell2);
00137   double comp;
00138   if (m_bUnsaturated)
00139      comp=1.0;
00140   else
00141     comp=0.0;
00142
00143
00144   if (m_Sw1 > m_Sw2)
00145     std::swap(m_Sw1,m_Sw2);
00146   //printf("Visc: %g  %g \tRatio: %g\n",m_vViscosities1(0),m_vViscosities1(1),m_vViscosities1(0)/m_vViscosities1(1));
00147   if (m_vViscosities1(0)*m_vViscosities2(1) > m_vViscosities1(1)*m_vViscosities2(0))
00148     m_Dmob.setParameters(m_vViscosities1);
00149   else
00150     m_Dmob.setParameters(m_vViscosities2);
00151   m_Dmob.updateInflectionPoint();
00152
00153   return std::max(fabs(m_vNormalVel(face.index)*m_Dmob.getMaxNorm(m_Sw1,m_Sw2)),comp*m_vNormalVel(face.index));
00154
00155
00156 }

void FaceFluxSimpleBlackOil::transformToFlash ( VecDouble & vec ) [virtual]

Reimplemented from FaceFluxFunction.

Definition at line 41 of file facefluxsimpleblackoil.cpp.

00042 {
00043   return;
00044 }

void FaceFluxSimpleBlackOil::updateDynamicData ( DynamicBase & dynMod ) [virtual]

Reimplemented from FaceFluxFunction.

Reimplemented in FaceFluxSimpleBlackOilMass.

Definition at line 14 of file facefluxsimpleblackoil.cpp.

00015 {
00016   dynMod.getNormalVelocityAtFaces(m_vNormalVel);
00017   m_pP=&(dynMod.getPressureAtCells());
00018 }

Member Data Documentation

bool FaceFluxSimpleBlackOil::m_bUnsaturated [protected]

Definition at line 26 of file facefluxsimpleblackoil.h.

double FaceFluxSimpleBlackOil::m_cd11 [protected]

Definition at line 28 of file facefluxsimpleblackoil.h.

double FaceFluxSimpleBlackOil::m_cd12 [protected]

Definition at line 28 of file facefluxsimpleblackoil.h.

double FaceFluxSimpleBlackOil::m_cd21 [protected]

Definition at line 28 of file facefluxsimpleblackoil.h.

double FaceFluxSimpleBlackOil::m_cd22 [protected]

Definition at line 28 of file facefluxsimpleblackoil.h.

double FaceFluxSimpleBlackOil::m_cell1 [protected]

Definition at line 23 of file facefluxsimpleblackoil.h.

double FaceFluxSimpleBlackOil::m_cell2 [protected]

Definition at line 23 of file facefluxsimpleblackoil.h.

double FaceFluxSimpleBlackOil::m_cl11 [protected]

Definition at line 27 of file facefluxsimpleblackoil.h.

double FaceFluxSimpleBlackOil::m_cl12 [protected]

Definition at line 27 of file facefluxsimpleblackoil.h.

double FaceFluxSimpleBlackOil::m_cl21 [protected]

Definition at line 27 of file facefluxsimpleblackoil.h.

double FaceFluxSimpleBlackOil::m_cl22 [protected]

Definition at line 27 of file facefluxsimpleblackoil.h.

DFChaventMobility FaceFluxSimpleBlackOil::m_Dmob [protected]

Definition at line 20 of file facefluxsimpleblackoil.h.

FlashCompositional& FaceFluxSimpleBlackOil::m_flash [protected]

Definition at line 18 of file facefluxsimpleblackoil.h.

OrthoMesh& FaceFluxSimpleBlackOil::m_mesh [protected]

Definition at line 17 of file facefluxsimpleblackoil.h.

FChaventMobility FaceFluxSimpleBlackOil::m_mob [protected]

Definition at line 19 of file facefluxsimpleblackoil.h.

const VecDouble* FaceFluxSimpleBlackOil::m_pP [protected]

Definition at line 22 of file facefluxsimpleblackoil.h.

double FaceFluxSimpleBlackOil::m_Sw1 [protected]

Definition at line 23 of file facefluxsimpleblackoil.h.

double FaceFluxSimpleBlackOil::m_Sw2 [protected]

Definition at line 23 of file facefluxsimpleblackoil.h.

VecDouble FaceFluxSimpleBlackOil::m_vNormalVel [protected]

Definition at line 21 of file facefluxsimpleblackoil.h.

VecDouble FaceFluxSimpleBlackOil::m_vViscosities1 [protected]

Definition at line 24 of file facefluxsimpleblackoil.h.

VecDouble FaceFluxSimpleBlackOil::m_vViscosities2 [protected]

Definition at line 25 of file facefluxsimpleblackoil.h.

The documentation for this class was generated from the following files:
